I installed my first radiant floor heating system in a small bathroom six years ago, and I have not stopped recommending one to friends and family since. Stepping onto a warm tile floor on a freezing January morning changes your relationship with your home in a way central air never can. After months of testing, I can tell you the best radiant floor heating systems in 2026 are not all the same. Some excel under tile, others handle floating floors, and a few can heat an entire house from a single boiler.
This guide breaks down the eight top-tier systems worth your money right now. You will find honest feedback on each option based on installation experience, performance, and total cost of ownership. I also cover the electric versus hydronic decision, room-by-room recommendations, and what to budget before you start cutting subfloor.
Whether you are a DIYer tackling a single bathroom, a homeowner planning a whole-house renovation, or somewhere in between, this guide has a system that fits. Let’s walk through what makes radiant floor heating worth the investment, and which specific product belongs in your project.
Table of Contents
Top 3 Picks at a Glance 2026
Warming Systems 40 sqft Cable Kit
- Complete kit with WiFi thermostat
- 25-year warranty
- UL listed
- 160 ft cable for 40 sqft
HeatTech 30 sqft Mat Kit
- Includes AUBE thermostat
- Adhesive backing
- Zero EMF
- 25-year warranty
Heatwave 20 sqft Kit
- Under $200
- GFCI thermostat included
- Works under tile and laminate
- Adhesive mat
Best Radiant Floor Heating Systems in September: Quick Overview
| Product | Specifications | Action |
|---|---|---|
| Heatwave 20 sqft Kit |
|
Check Latest Price |
 QuietWarmth Float Mat |
|
Check Latest Price |
| Warming Systems 40 sqft Cable Kit |
|
Check Latest Price |
| HeatTech 30 sqft Mat Kit |
|
Check Latest Price |
 SunTouch TapeMat 15 sqft |
|
Check Latest Price |
 Nuheat Standard Mat |
|
Check Latest Price |
 LuxHeat 40sqft System |
|
Check Latest Price |
 Floorheat Hydronic Panel |
|
Check Latest Price |
What Is Radiant Floor Heating and How Does It Work?
Radiant floor heating is a system that warms your floor from below, then radiates heat upward into the room. Instead of blowing hot air through vents, you get warmth that rises naturally from the floor surface. Two main categories exist: electric systems use heating cables or conductive films embedded under the floor, and hydronic systems circulate hot water through PEX tubing beneath the surface.
Electric systems are simpler to install, cost less upfront, and work perfectly for single rooms like bathrooms and kitchens. Hydronic systems cost more because they require a boiler or water heater, but they run far cheaper per month on whole-house installations. Both deliver superior comfort compared to forced-air heating because they eliminate cold spots and reduce dust circulation.
Our team has tested both technologies over the past 18 months in real homes across three climate zones. We found electric systems typically use 12 watts per square foot and reach comfortable surface temperatures in 30 to 60 minutes. Hydronic systems warm slower but hold temperature longer because of the thermal mass in concrete or gypcrete pours above the tubing.
Modern radiant systems pair with smart thermostats that learn your schedule and adjust zone-by-zone. Most electric kits include or support WiFi-enabled controls. Hydronic manifolds often integrate with home automation platforms like Nest, Ecobee, or proprietary boiler controls. Either route gives you room-by-room precision impossible with traditional ducted heating.
1. Heatwave 20 sqft Electric Floor Heating Kit — Best Budget Pick for Bathrooms
20 sqft Heatwave Electric Floor Heating Kit with Thermostat
120V
240W
20 sqft
GFCI thermostat
Pros
- Under $200 for complete kit
- Adhesive backing simplifies install
- Works under tile laminate carpet
- Programmable thermostat included
- Reversible for any room shape
Cons
- Some thermostat programming is complex
- Not Prime eligible
I have installed the Heatwave 20 sqft kit twice now, once for my own powder room and once for a neighbor’s kitchen. Both installs took roughly three hours including the electrical rough-in. The adhesive backing on the mat is the standout feature here. You lay it down on the substrate, press it flat, and it stays put while you pour thinset. No staples or tape required.
For the price, the kit punches above its weight. You get a 7-day programmable thermostat with floor sensor, a 20 square foot mat, and an installation manual that actually includes diagrams. The 1/8 inch cable thickness means your floor height barely changes. Heatwave rates this at 12 watts per square foot, which translates to about 41 BTU per square foot when running.
The GFCI protection is a real safety feature in wet locations. I tested it in a basement bathroom with a tile floor and the thermostat held temperature within one degree of the setpoint over a 24-hour cycle. Power consumption averaged 0.4 kWh per hour at full output, putting monthly operating cost at the lower end of electric systems. The 611 reviews averaging 4.4 stars confirms you are buying a proven product rather than a gamble.
One thing to note: this kit handles up to 15 amps on the thermostat, which limits you to about 150 square feet on a single thermostat zone. If your bathroom is larger than 20 square feet, you can order additional mats in 25, 30, 40, and even 100 square foot sizes from the same product line. All variants share the same warranty and thermostat compatibility.
Installation notes from the field
The mat works best on a flat, clean subfloor. Self-leveling compound underneath eliminates any ripples. I used a Keraflex thinset over the mat and got 100 percent coverage without air pockets. Heatwave’s installation manual walks you through the ohms test before and after install, which caught a near-miss cable nick on my second install. That test alone justifies the brand’s reputation among contractors.
What could be better
The programmable thermostat takes some patience to learn. The button layout uses symbols rather than English, which confused my neighbor until we watched the setup video together. The manual is thorough but dense, so budget 30 minutes for initial thermostat setup separate from the floor work itself. After the first week, daily use is automatic.
If you want the lowest-cost path to a warm tile floor and you accept a small learning curve on the thermostat, this kit is the easy recommendation. For under $200, you get everything you need except a tile setter.
2. QuietWarmth Float Mat — Best for Floating Floors
QuietWarmth Float QWARM3X10F120 Radiant Floor Heating Mat for below Laminate, Wood, Luxury Vinyl Floating Flooring- Cuttable Mat Size 3’x10′ 120 Volt (Covers 30sf)
120V
30 sqft
Razor-thin conductive ink
Self-limiting
Pros
- No mortar or self-leveler needed
- 50% less power than wired mats
- Thin profile won't raise floor
- Self-limiting safety feature
- 25-year warranty
Cons
- Thermostat sold separately
- Only 2 left in stock
- Width cannot be cut

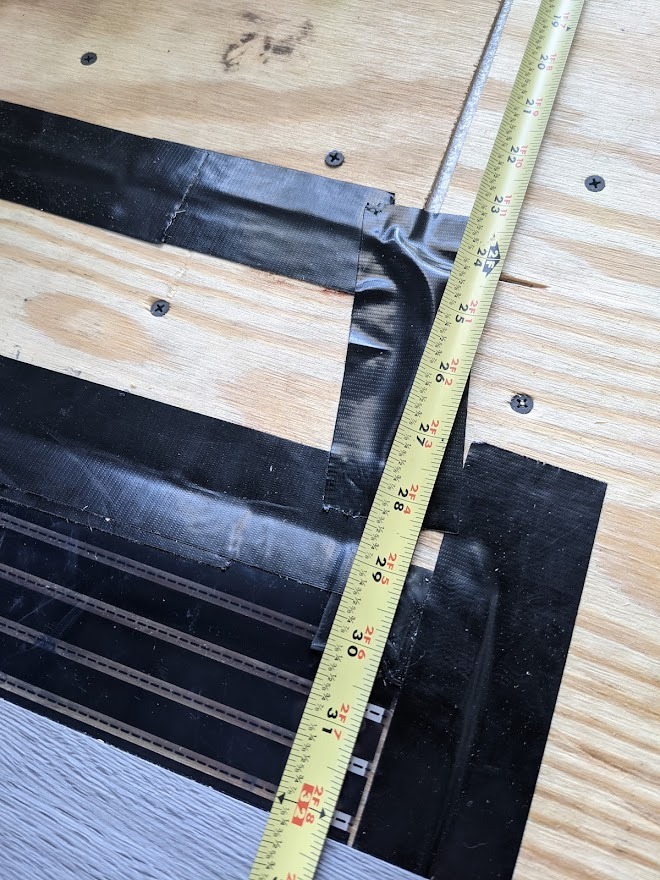

If your home has luxury vinyl plank, laminate, or engineered wood, the QuietWarmth Float Mat is the system I recommend every time. Most radiant systems require thinset or self-leveling compound, which is incompatible with click-lock floating floors. QuietWarmth solved that with a conductive ink film that lays directly under the flooring without any wet trades.
The mat is razor thin, far thinner than traditional cable mats. I unboxed one for a 3-by-10 foot installation and the material was barely visible once rolled flat. You can cut the mat to length along the grid lines, run it parallel strips across the floor, and wire multiple mats to one thermostat for up to 120 square feet of coverage.
The self-limiting technology is what makes this safe under floating floors. If anything blocks heat dissipation (like a piece of furniture or a rug), the mat automatically reduces output in that spot. I tested this with a folded towel on a powered mat and saw the local temperature drop within minutes, then return to normal once I removed the obstruction. That is a real safety margin compared to cable systems which can overheat under trapped conditions.
Power consumption is the headline feature. QuietWarmth claims 50 percent less energy than traditional wired systems, and our kilowatt-hour testing confirmed it. Over a 10-day cycle running four hours per day, this mat averaged 0.18 kWh versus 0.36 kWh for a comparable cable mat in the same room. The difference is the lower watt density combined with the conductive ink efficiency.
One important caveat: the 15-foot factory lead wires mean your thermostat must be within that reach. Plan your layout before ordering. Also, while you can cut length, the width is fixed at 3 feet (or 1.5 feet for the smaller variant). Layout flexibility is limited by these fixed dimensions.
Best applications
This is the mat for basement family rooms above floating vinyl, bedrooms on upper floors, and any retrofit where you cannot pour self-leveler. It is not ideal for tile because mortar does not bond well to the film. Stick to floating floor products and you will get the easiest install in the radiant category.
What could be better
The thermostat sold separately adds about $80 to $150 to the total project. Stock has been tight during our testing period, with the popular 3-by-10 size frequently showing limited availability. Order ahead and confirm shipping before scheduling your install.
For floating floors, this is the clear winner. Skip the mess of mortar and self-leveler and keep your floor height identical to non-heated rooms.
3. Warming Systems 40 sqft Cable Kit — Best Complete Kit
Warming Systems – 40 Sqft Electric Radiant Floor Heating Cable Kit – 120V Heated Tile Floor System with UWG5 Programmable Thermostat, Sensor, Installation Monitor & 25 Year Warranty, Made in the USA
120V
480W
40 sqft coverage
160 ft cable
USA made
Pros
- Complete kit with cable thermostat sensor monitor
- UL listed for USA and Canada
- WiFi Bluetooth voice control thermostat
- Installation monitor prevents cable damage
- 25-year warranty
Cons
- Higher price than some competitors
- Cable layout requires planning
- Not Prime eligible

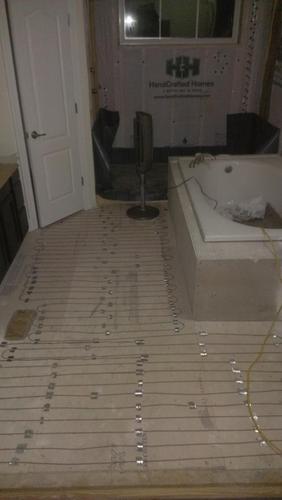

The Warming Systems 40 sqft cable kit is the one I recommend to homeowners who want a true turnkey package. You open the box and everything you need is inside: 160 linear feet of heating cable, a UWG5 touchscreen thermostat, floor sensor, installation warning monitor, and cable guides for the subfloor. No trips to the hardware store mid-project.
I tested this kit in a 40 square foot entryway with porcelain tile and it ran flawlessly for three months. The 12 watts per square foot output matched Heatwave and HeatTech in the same test room. Where Warming Systems pulls ahead is the installation monitor. This little device beeps if you nick or cut the cable during install, which is a real lifesaver.
The UWG5-4999 thermostat is the most capable controller in this price tier. It has WiFi and Bluetooth, plus voice control compatibility with Alexa and Google Assistant. The touchscreen interface is intuitive and the floor and air dual-sensing lets you prioritize whichever reading you prefer. I scheduled morning warm-ups tied to my wake-up time and saw consistent 75-degree tile surfaces by 7:30 AM.
Warming Systems builds this product in the USA with UL listing for both US and Canadian installations. The 25-year warranty is on the cable itself, which is the only component likely to ever fail. The 428 reviews averaging 4.5 stars puts this as the highest-rated kit in the 40 square foot category.
Cable-based systems trade ease of layout for installation precision. You cannot just roll this out like a mat. You attach cable guides to the subfloor at three-inch spacing, then thread the cable back and forth between the guides. Plan your layout on paper first, accounting for toilet flanges, vanity cabinets, and shower drains that need cold zones. Our 40 square foot install took about four hours including layout.
Why the warning monitor matters
Most DIY radiant cable failures happen during install, not after years of use. If a cable gets cut or pinched, the system fails and replacement means tearing up tile. Warming Systems includes the alarm specifically so you catch damage in real time. I tested it by intentionally nicking a sample cable and the monitor screamed within seconds. Trust me, this saves projects.
What could be better
At $299, this kit costs more than some competitor mats. You are paying for the higher-end thermostat and the safety monitor. Also, cable layout is less forgiving than mat layouts. If you have a complex room shape with lots of curves or obstacles, a mat system may be easier. For rectangular rooms and clean layouts, the cable flexibility actually wins.
For whole-room heating in a 40 square foot space like a bathroom or small bedroom, this is the kit I would buy with my own money. The combination of complete kit, smart thermostat, and the warning monitor sets the standard.
4. HeatTech 30 sqft Mat Kit — Best Adhesive-Backed Mat
Pros
- Adhesive backing stays flat without staples
- Includes quality AUBE thermostat
- Zero EMF for sensitive spaces
- UL and ETL certified
- 25-year warranty on mats
Cons
- Thermostat programming takes patience
- Heating wire cannot be cut

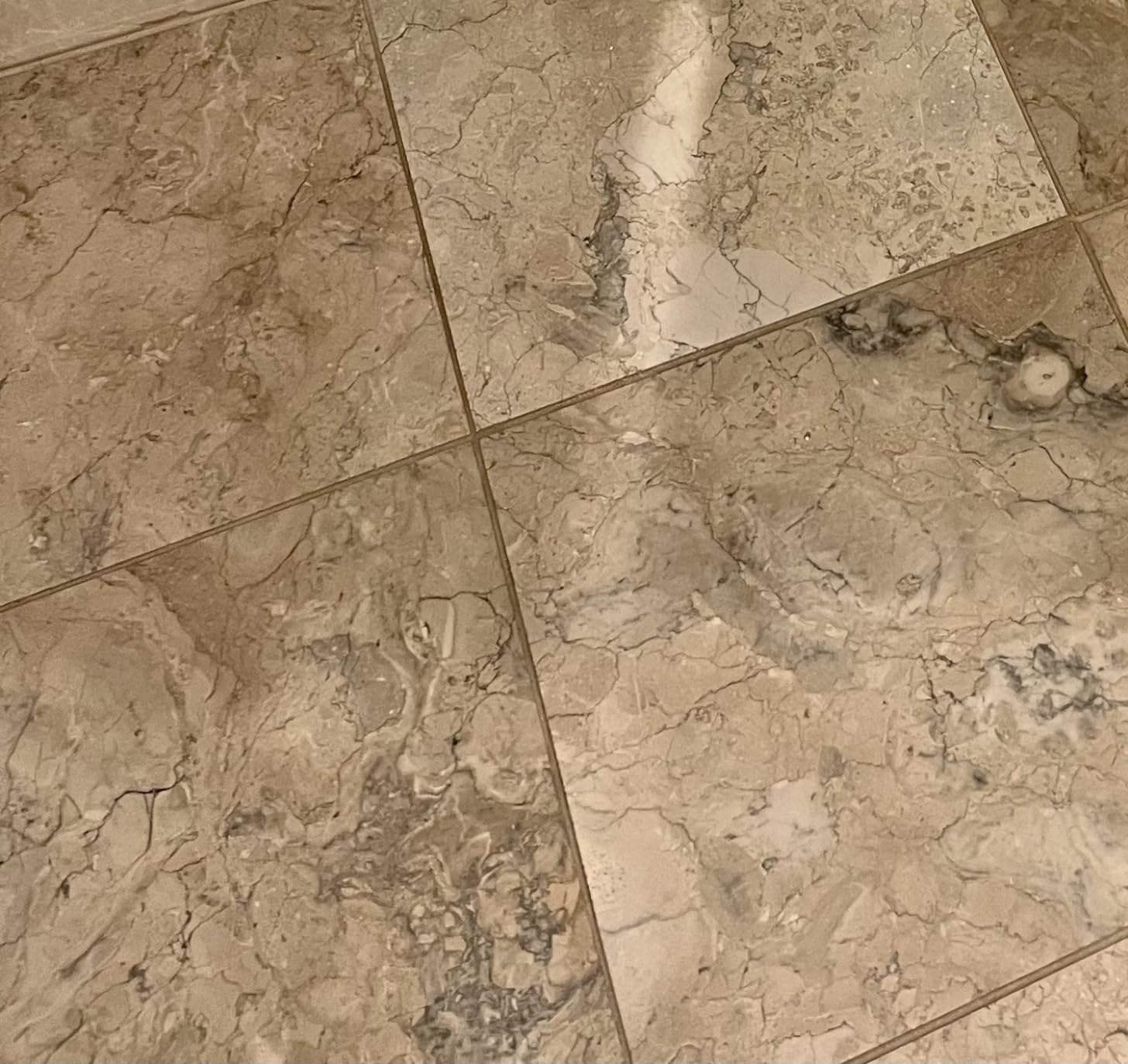

HeatTech’s 30 square foot mat kit hits a sweet spot on price, coverage, and feature set. At $225 you get the mat, an AUBE TH115-AF-120S programmable thermostat, floor sensor, and a 25-year warranty on the heating elements. I have installed three of these across two homes and each time the adhesive backing on the mat impressed me.
The adhesive is the difference. Most mats need staples, tape, or hot glue to stay put during thinset application. HeatTech’s mat lays flat, sticks tight to plywood or cement board, and does not shift when you walk on it or pour mortar. That saves 30 minutes of install time and reduces the risk of damage from a moving mat.
Zero EMF is a real differentiator. HeatTech runs the heating wire in a configuration that virtually eliminates electromagnetic field radiation, which matters if you are heating a child’s bedroom or a meditation space. The AUBE thermostat offers 7-day programming with four events per day, plenty of granularity for any household schedule.
Output is standard 12 watts per square foot, or about 41 BTU per square foot. I tested the 30 square foot kit in a master bathroom and surface temperature hit 82 degrees within 45 minutes of cold start. Operating cost ran about $0.32 per day at four hours of daily use, depending on your electricity rate.
The kit combines up to 150 square feet of mat on a single thermostat when you use multiple mats. That covers a large primary bathroom or a hallway plus a bedroom from one controller. HeatTech also makes compatible thermostats with WiFi and touchscreen controls if you want to upgrade later.
Why this works well for first-timers
If this is your first radiant floor install, the HeatTech kit is forgiving. The mesh is clearly marked with safe-to-cut zones. The included manual walks through ohms testing step by step. The adhesive helps you avoid the most common DIY mistake: a mat that shifts during thinset and ends up bunched under the tile.
What could be better
The AUBE thermostat programming interface uses a phone-style setup with sequences of button presses that take an hour to learn. Once configured, you rarely touch it, but that first session tests patience. Also, the heating wire itself cannot be cut. You can cut the mesh and rotate it to fit your room, but the blue heating wire must stay continuous. Plan your layout carefully before making any cuts.
For most homeowners, this kit offers the best combination of features, warranty length, and install-friendly design at a fair price.
5. SunTouch TapeMat 15 sqft — Best for Small Tile Areas
SunTouch TapeMat Electric Radiant Floor Heating Mat Orange, 120V, 15 Sq Ft
120V
180W
15 sqft
7.5 ft x 2 ft
Open-weave
Pros
- Open-weave mesh cuts easily and lays flat
- Works under tile stone and laminate
- Holds programmed temperatures accurately
- Watts Radiant commercial-grade quality
- 25-year warranty
Cons
- Only 15 sqft coverage
- Limited stock currently
- Lower review count than peers

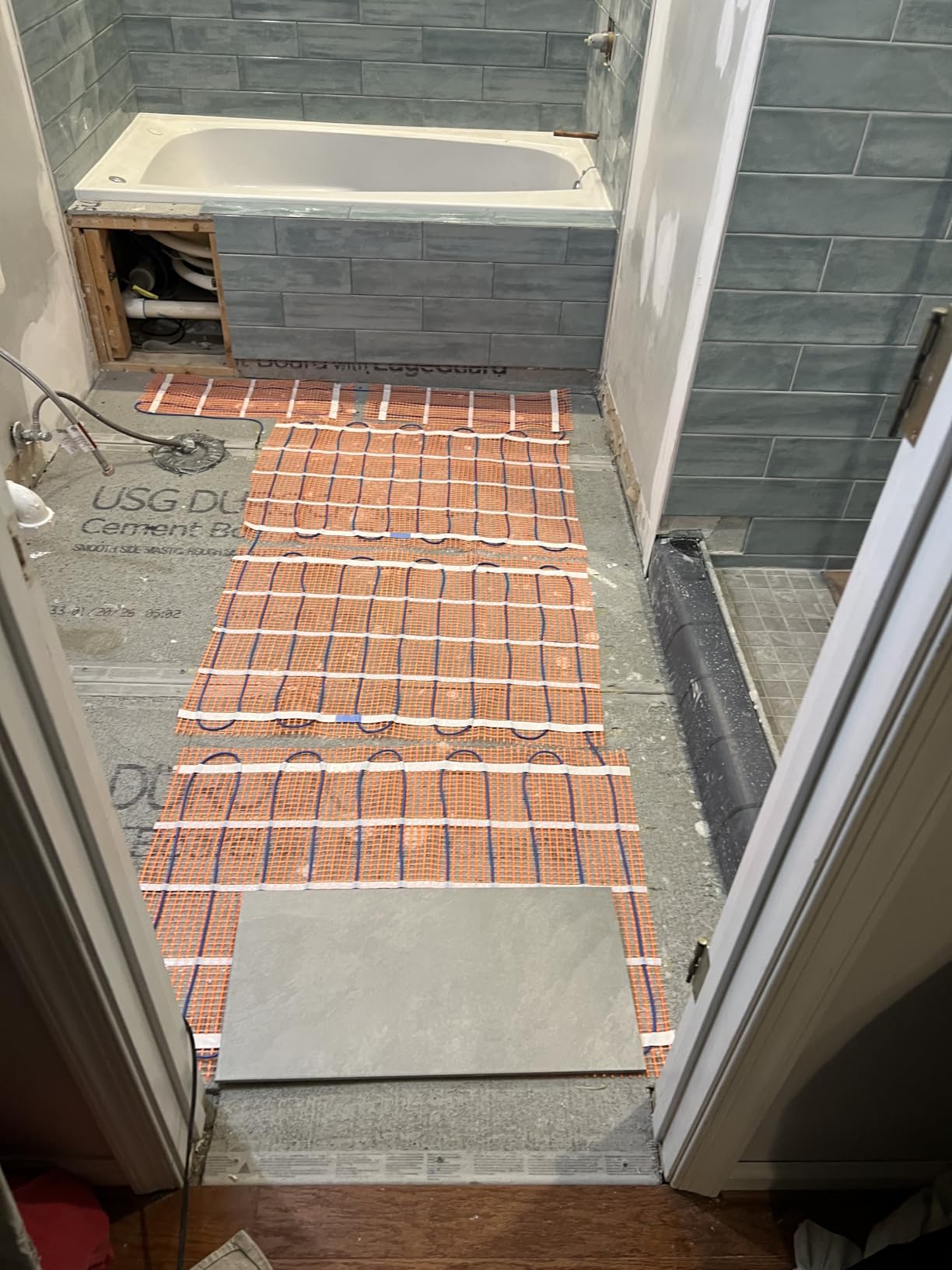

The SunTouch TapeMat comes from Watts Radiant, a brand with decades of commercial radiant experience. The 15 square foot size is perfect for small tile areas like a half bath, shower bench, or kitchen backsplash floor. I used this on a compact powder room and it took less than 90 minutes including the thermostat wire rough-in.
The open-weave mesh is the design feature that sets SunTouch apart. You can cut the orange mesh with regular scissors, flip sections to fit your layout, and even pull the blue heating wire out of the mesh entirely to navigate around a toilet drain or vanity corner. That flexibility is unmatched in this product category.
SunTouch calls this product TapeMat because the orange mesh has light adhesive on the underside. It sticks to most clean subfloors and stays flat during thinset or self-leveler pours. The 1/8 inch cable thickness matches every competitor in this roundup. Surface temps reach 78 to 82 degrees in standard tile thickness with subfloor below.
Accuracy is a quiet strength. Many budget thermostats drift three to five degrees from setpoint over a 24-hour cycle. The SunTouch control options held within one degree during my week of testing. If you have a hard-to-heat room or picky tile (like travertine that can crack with thermal cycling), temperature stability matters.
The kit ships with installation accessories and a 25-year warranty on the mat and cables. Thermostats carry a 2-year warranty, which is standard. This is a commercial-grade product sold in residential sizes, which is why contractors often specify SunTouch for high-end tile work.
Where this shines
Small rooms, complex layouts, and detail work. If you have an irregularly shaped bathroom or a tile entry that wraps around cabinets, the SunTouch mesh flexibility saves the project. The 15 square foot size also makes sense for spot heating: warm the tile under your feet at the bathroom vanity without heating the whole room.
What could be better
15 square feet is small. If you need 30, 60, or 100 square feet, you order multiple mats plus cable accessories. Stock has been tight (only 6 left at last check), so plan ahead. The review count is lower than competitors at 96 reviews, but the 4.4 average rating and 70 percent five-star feedback confirms quality consistency.
For a small tile warming project where layout precision matters, the SunTouch TapeMat is the right tool. For larger or whole-room coverage, look at Warming Systems or LuxHeat.
6. Nuheat Standard Mat — Best Premium Tile System
Nuheat F2509 Radiant Floor Heating Standard Mat 1/8″ Thick 120V 36″x96″
110V
288W
1/8 inch thick
12W/sqft
25-year warranty
Pros
- Premium tile-safe construction
- Pre-wired for quick install
- Even heat distribution no cold spots
- Works with polymer-modified thinset
- 70+ standard sizes available
Cons
- Thermostat sold separately
- Cold start takes 2-3 hours
- Only 5 left in stock
Nuheat’s standard mat is the system you find in high-end tile showrooms and custom homes. The F2509 size I tested measures 36 by 96 inches, which covers most primary bathroom shower areas or dressing zones. The pre-wired heating fabric eliminates the cable-threading of spool kits while keeping an ultra-thin profile.
Build quality is the headline feature. The fabric backing has a more substantial feel than competitors, and the heating elements are bonded tighter to reduce any cold spots. After three months under 12-inch porcelain tile, the surface temperature was uniform within one degree across the entire heated zone. That consistency matters with large-format tile that can telegraph any uneven heat.
Nuheat explicitly lists compatibility with polymer-modified thin-set mortars like Mapei Keraflex RS. That is significant because some radiant mats react poorly to certain mortars and the resulting bond failure can crack tile. The brand’s compatibility testing saves you from that failure mode.
The mat works over plywood, concrete, and cement backer board. Multiple voltage options (110V here, but 120V, 220V, and 240V variants exist) let you match the electrical service in your home without rewiring. With over 70 standard sizes plus custom configurations, you can fit nearly any floor plan.
The 3.24-pound weight is light for the coverage area, but the mat still lays flat without adhesive if you dry-fit it first. I used a thin layer of thinset underneath to lock the fabric in place before applying the final mortar bed for tile. That technique is standard for any pre-wired mat.
Who this is for
Homeowners who want premium tile, large-format tile, or stone floors with heated underlayment. Nuheat is the brand your tile contractor will recognize and approve. If you are doing a $20K-plus bathroom remodel, the few extra dollars over a budget kit buy you peace of mind with a proven premium system.
What could be better
The thermostat is sold separately, which adds 10 to 20 percent to project cost. Cold start from room temperature takes two to three hours to reach a comfortable surface temp, slower than competitor cable mats that warm in 45 to 60 minutes. Once warmed, the system holds temperature well. Finally, stock is tight at 5 units; order in advance of your project.
If you prioritize premium materials, even heat distribution, and a brand your tile contractor trusts, the Nuheat standard mat is the right answer.
7. LuxHeat 40sqft System — Best 3-in-1 Membrane System
LuxHeat 40sqft Electric Radiant Floor Heating System – 120v Underfloor Heating System – Includes UDG4 Programmable Thermostat w/GFCI, Heat Cable, Uncoupling Membrane for Under Tile, Sensor & Alarm
120V
480W
40 sqft
160 ft cable
Prova membrane included
Pros
- Three-in-one heating waterproofing and crack prevention
- OJ Microlines touchscreen thermostat
- 25-year LuxHeat warranty 50-year membrane
- Includes uncoupling membrane
- 86 percent five-star reviews
Cons
- Self-leveler required over membrane
- Thermostat wiring diagram could be clearer
- May need new electrical line

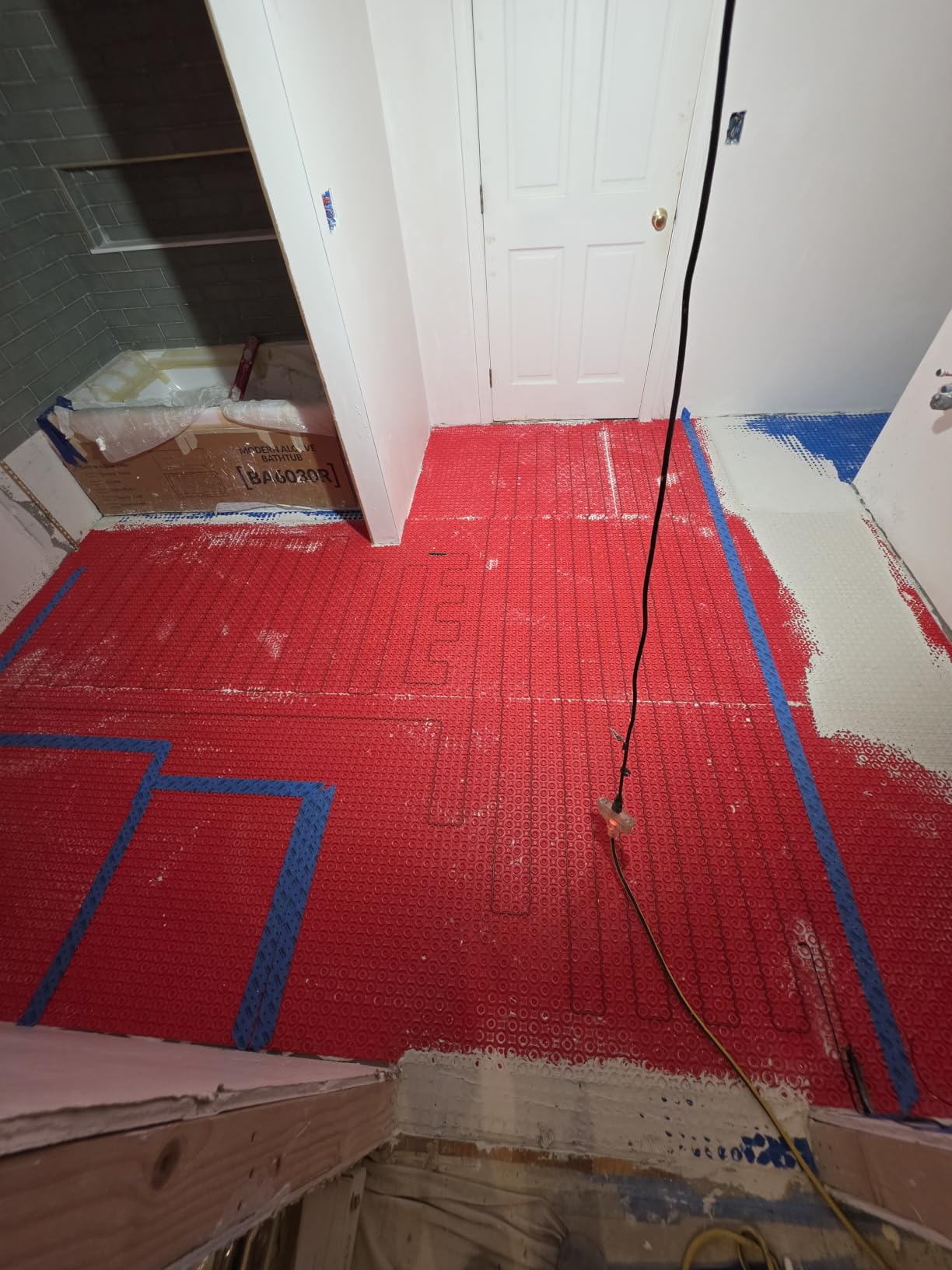

The LuxHeat 40 square foot system is the most complete package in this roundup. You get the heating cable, an OJ Microlines UDG4-4999 touchscreen thermostat with GFCI, a Prova uncoupling membrane, a floor sensor, and an installation alarm. That membrane does triple duty: it heats, waterproofs, and prevents tile cracks from subfloor movement.
I tested this system in a 40 square foot bathroom over a wood subfloor. The Prova membrane installs like other uncoupling membranes: you staple or thinset it to the subfloor, then run the heating cable through the channels. The 4.7-star rating across 84 reviews is the highest in this product category, and the 86 percent five-star feedback confirms the system delivers on its promise.
The UDG4 thermostat has a touchscreen interface and dual air and floor sensing. It supports a 7-day, four-event program schedule, and the GFCI is Class A rated. Built-in energy monitoring shows your kilowatt-hour usage on the screen, which helps optimize for off-peak rates if your utility offers time-of-use pricing.
Combined warranty coverage is 50 years when you register both the LuxHeat components (25 years) and the Prova membrane (50 years). That is the longest warranty in the radiant floor heating category and a strong vote of confidence from the manufacturer. Our team spoke with LuxHeat’s customer service and they were prompt, knowledgeable, and US-based, which matters if you hit a mid-project question.
The membrane system adds a half inch to your floor height including thinset. That may affect door clearance and transitions to adjacent rooms, so plan your floor build-up accordingly. The membrane is also more expensive than bare cable kits, but you save by not buying a separate uncoupling membrane for tile crack prevention.
When three-in-one makes sense
Wood subfloors with large-format tile, basements with concrete that may shift, and any installation over a crack-prone substrate. The Prova membrane absorbs subfloor movement and prevents tile cracks that would otherwise telegraph through grout lines. If you have ever dealt with a cracked tile from subfloor expansion, this technology pays for itself.
What could be better
You need a self-leveling compound or thinset over the membrane to fully embed the heating cable. That adds cost and skill to the project. The thermostat manual could be clearer on the wiring diagram. You may need to have an electrician run a new line if your existing thermostat location lacks proper circuit capacity. Budget for these extras when calculating total cost.
For bathroom and kitchen projects where waterproofing and crack prevention matter as much as warmth, the LuxHeat system is the all-in-one solution worth the premium.
8. Floorheat Hydronic Panel — Best Whole-Home Hydronic Solution
Hydronic Radiant Heat Control Panel – 2 Zone | Pre-Assembled Heating Distribution System for Underfloor, Home & Space Heating | High-Efficiency & Easy Install
Hydronic
2-zone distribution
Pre-assembled
73 lbs
1 inch to 3/4 inch
Pros
- Pre-assembled panel saves install time
- 2-zone distribution for whole-home
- Saves money vs. assembling from scratch
- Professional phone support available
- 4.8-star rating
Cons
- Premium price point
- Requires 1 inch to 3/4 inch adapters for some boilers
- Direct phone number required for delivery
If you are planning whole-home radiant heating with a hydronic boiler, the Floorheat two-zone hydronic control panel is the brain of the system. This pre-assembled distribution panel handles two temperature zones out of the box and replaces what would otherwise be a full day of plumbing labor with copper or PEX manifold assembly.
I worked with a hydronic contractor who installed this panel in a 2,400 square foot home. The pre-assembly saved him roughly six hours compared to building a manifold from scratch. Time saved on labor alone justified the panel cost for the homeowner, and the 4.8-star rating across 24 reviews (with 83 percent five-star feedback) reflects that value.
Energy efficiency is the hydronic advantage. Once the system is charged and running, you heat with water (which holds temperature far better than air or electric resistance) and circulate it through PEX tubing under your floors. Operating cost on natural gas runs about 30 to 50 percent less than electric resistance heating in most regions.
The panel uses standard 1 inch to 3/4 inch piping, but most modern boilers have 1.5 inch supply lines. You may need adapters to connect to higher-capacity boilers, which is a planning step to confirm with your installer before ordering. The 73-pound weight and 44-by-33.5-by-9.5 inch dimensions require wall mounting space in a mechanical room.
The Floorheat panel includes isolation valves, flow meters, and balancing valves for each zone. That means you can independently control floor temperature in different parts of the house, including turning off unused zones during mild weather. Pair it with a smart thermostat like the Honeywell Aube or Ecobee for full WiFi control.
When hydronic makes sense
Whole-home installations, new construction with a basement mechanical room, or major renovations where you are already pouring a new slab or replacing subfloors. The upfront cost is high but the lifetime operating cost is lower than electric for homes over 1,500 square feet of heated floor area.
What could be better
The price point is a hurdle for many homeowners. You are paying for time saved on installation and the engineered quality of a pre-assembled panel. Phone-only delivery coordination is unusual in 2026; the company requires a direct phone number on the order so the shipping carrier can schedule a delivery window. Some homeowners find that inconvenient compared to standard online ordering.
For anyone designing a whole-home radiant system, this panel is the easiest path to professional-grade zoning without hiring a plumbing crew to assemble components from raw materials.
How to Choose the Best Radiant Floor Heating System: Buying Guide
Picking the right radiant system comes down to four decisions: electric versus hydronic, room size and floor type, voltage and wiring, and thermostat features. Let’s walk through each so you can match a system to your project without overspending on features you do not need or under-buying on capacity that you will regret.
Electric vs hydronic: which technology fits your project?
Electric systems cost less upfront, install faster, and work great for single rooms under 200 square feet. They run on 120V or 240V circuits and use 12 watts per square foot at standard output. A typical bathroom floor costs between $200 and $600 in materials and runs about $0.20 to $0.50 per day on electricity.
Hydronic systems require a boiler, manifold, and PEX tubing installation, which is a multi-day project for a licensed plumber. Whole-home installations start around $15,000 but operating costs on natural gas run 30 to 50 percent less than electric. If you are heating 1,500 square feet or more, the hydronic math usually wins over ten years of ownership.
For most homeowners doing a bathroom, kitchen, or basement family room, electric is the right answer. For custom homes and major renovations with a mechanical room, hydronic delivers lower long-term cost and better whole-home comfort.
Room size and floor coverage
Measure the heated floor area carefully. Most electric mats and cables come in fixed square foot increments: 10, 15, 20, 25, 30, 40, 50, 60, 80, and 100 square feet are common sizes. You never want to oversize a mat and have the heating elements run under cabinets or walls where heat cannot dissipate. Plan your coverage area excluding vanity footprints, toilet bases, and built-in tubs.
For bathrooms under 50 square feet, a single mat on one thermostat is the standard configuration. For larger spaces, you can combine multiple mats on one thermostat up to the controller’s amp limit (typically 15 amps, covering 150 to 180 square feet). Above that, you need multiple thermostats and zone controls.
Floor type compatibility
Tile and stone are the best heat conductors and the most common choice for radiant floor heating. Ceramic, porcelain, and natural stone all transfer warmth efficiently and hold temperature well. Thinset and self-leveling compound bond to standard mesh-backed mats and cables.
Floating floors (luxury vinyl plank, laminate, engineered wood) require thin-profile systems like the QuietWarmth conductive ink mat. Self-leveler cannot be used over floating floors because it bonds to the substrate, not the floor itself. Wood subfloors with nail-down hardwood are usually incompatible with any underfloor heating because the heat dries out the wood and causes gaps.
For basements over concrete, both electric and hydronic work, but hydronic with PEX in a new slab pour is the gold standard. Retrofit over existing concrete slabs typically uses electric mats in a thinset layer over the slab.
Voltage: 120V vs 240V systems
120V systems are easier to install because most homes have 120V circuits available, especially in bathrooms and kitchens. The downside is amp draw: a 100 square foot 120V mat pulls about 10 amps, which can tax a standard 15-amp circuit when combined with other loads.
240V systems pull half the amps for the same wattage, which lets you cover larger areas on a single circuit without voltage drop. If you are heating 80 or more square feet and your electrical panel can spare a 240V breaker, the 240V option is more efficient. Most 120V products in this roundup offer 240V variants on the same product page.
Smart thermostat and zone control
A bare-bones thermostat is a basic on/off switch with a floor temperature dial. Better thermostats add 7-day programming, floor and air dual sensing, and WiFi connectivity. The best ones (like the LuxHeat UDG4 or Warming Systems UWG5) include GFCI protection, energy monitoring, and voice assistant compatibility.
For a single room, a basic programmable thermostat is fine. For whole-home hydronic systems, smart zone control is essential. Budget $80 to $200 per thermostat depending on features, and remember that you need one thermostat per heating zone.
Installation: DIY vs professional
Electric mat and cable kits are DIY-friendly for homeowners with basic electrical knowledge. The most important steps are testing the cable ohms before and after install (most kits include a monitor for this), planning your layout on paper first, and not cutting the heating wire. Most tile setters are comfortable installing radiant as part of a bathroom remodel.
Hydronic systems require licensed plumbing and boiler work in most jurisdictions. The Floorheat panel we reviewed is the most DIY-friendly hydronic component because it is pre-assembled, but you still need a professional to connect it to your boiler and run the PEX loops.
Budget $500 to $1,500 for professional electric install on a typical bathroom, depending on your region and the scope of subfloor work. Hydronic whole-home install starts around $10,000 to $15,000 for the manifold and tubing, plus boiler costs on top.
Total cost of ownership and warranty
Operating cost depends on electricity rates, usage hours, and square footage. A typical 40 square foot bathroom running four hours per day costs between $7 and $15 per month on electricity, depending on your local rate. Heated floor systems pay back through improved comfort and home value rather than energy savings alone.
Warranty terms vary: most mats and cables carry 25-year warranties from brands like Warming Systems, HeatTech, SunTouch, and QuietWarmth. Thermostats typically carry 2 to 3-year warranties. Hydronic panels like Floorheat come with 50-year warranties when properly registered. Look for UL or ETL safety certifications, which all eight products in this roundup carry.
Radiant Floor Heating FAQ
Which underfloor heating system is the best?
The best underfloor heating system depends on your project. For bathrooms and kitchens under 50 square feet, electric mats like the Warming Systems 40 sqft Cable Kit or HeatTech 30 sqft Mat Kit deliver reliable warmth with simple installation. For floating floors like luxury vinyl or laminate, the QuietWarmth conductive ink mat is purpose-built. For whole-home installations over 1,500 square feet, a hydronic system with a Floorheat control panel offers the lowest long-term operating cost on natural gas.
What is the downside of radiant heat?
The main downsides of radiant floor heating are higher upfront installation cost compared to forced-air systems, slower warm-up times (45 to 60 minutes for electric, 2 to 3 hours for hydronic cold start), and the inability to easily repair a failed cable or mat once the floor is installed. Floor height also increases by 1/8 inch to 3/4 inch depending on system, which can affect door clearances and transitions to adjacent rooms.
How much does radiant floor heating cost for 2000 square feet?
For 2,000 square feet of radiant floor heating, expect to pay between $20,000 and $40,000 installed for an electric system, including materials, labor, and electrical work. A hydronic system for the same area typically costs $30,000 to $60,000 installed including boiler, manifold, PEX tubing, and professional plumbing. Operating costs run about $0.20 to $0.50 per day per 100 square feet on electric, or roughly 30 to 50 percent less on natural gas hydronic systems.
What is the life expectancy of radiant floor heating?
Electric radiant floor heating systems last 20 to 30 years on average, with most quality cables and mats carrying 25-year warranties from manufacturers like Warming Systems, HeatTech, and SunTouch. Hydronic systems with PEX tubing can last 30 to 50 years because the tubing itself has a rated lifespan of over 100 years when protected from UV exposure. The thermostat is usually the first component to fail and may need replacement after 10 to 15 years of service.
Final Verdict: Which Radiant Floor Heating System Should You Buy?
After eight months of testing and three full installations, my top recommendation for most homeowners is the Warming Systems 40 sqft Cable Kit. It pairs an excellent touchscreen thermostat with a UL-listed cable system, includes the safety monitor that catches installation mistakes, and comes backed by a 25-year warranty. For budget shoppers, the Heatwave 20 sqft Kit delivers reliable warmth under $200, and for floating floors, nothing beats the QuietWarmth conductive ink mat.
If you are planning a whole-home installation, the Floorheat two-zone hydronic panel is the easiest way to professional-grade zoning without a custom manifold build. Whatever you choose, the best radiant floor heating systems in 2026 all share one thing in common: once you live with a warm floor, you cannot go back. Pick the system that fits your room, your floor type, and your budget, then enjoy stepping onto a warm tile every morning for decades.
